Electrolytic mold cleaning machines were already widely used in the Japanese injection molding industry as early as 2000, helping Japanese injection molding manufacturers gain a global reputation.

Shanmo's electrolytic mold cleaning machine combines the advantages of electrolysis and ultrasonic cleaning. It uses ultrasound to deliver electrolyte into various hard-to-clean areas of the mold, such as uneven surfaces, corners, and ejector pin holes. Utilizing the principle that hydrogen molecules are the smallest molecules, hydrogen gas penetrates the dirt and is then electrolyzed back into hydrogen gas, pushing the dirt away from the mold surface.

Electrolytic Mold Cleaning Machine Working Principle

Electrolysis Working Principle

Shanmo's electrolytic mold cleaning machine combines the advantages of electrolysis and ultrasound. The mold is placed at the bottom of the cleaning basket, in contact with the negative electrode. Hydrogen molecules in the electrolyte gather from the positive electrode to the negative electrode. Because hydrogen molecules are the smallest molecules, they can penetrate the dirt adhering to the mold. When electrolysis begins, the hydrogen molecules electrolyze into hydrogen gas, which expands and pushes off the dirt from the mold surface.

Ultrasound allows the electrolyte to be flushed and vibrated, delivering the electrolyte to various hard-to-clean areas of the mold, such as uneven corners and ejector pin holes.

Product Model

Industry Background and Market Demand

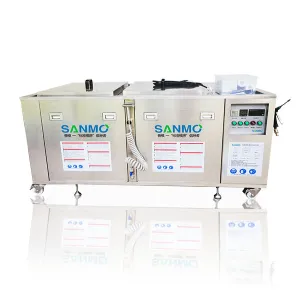

Modern manufacturing sectors, including automotive, electronics, medical devices, and packaging, increasingly rely on high-precision molds to maintain product quality and efficiency. Mold performance directly affects cycle times, surface finish, and dimensional accuracy. Over time, cooling channels and cavity surfaces accumulate rust, scale, and polymer residues that hinder thermal efficiency and mold functionality. Traditional manual cleaning methods are labor-intensive, inconsistent, and may risk damaging critical mold features. The Two-cell electrolytic mold cleaning machine addresses these challenges, providing a controlled, repeatable, and automated cleaning solution suitable for high-volume and high-precision production environments.

Core Concept and Key Technologies

The two-cell electrolytic mold cleaning machine uses a dual-stage cleaning process, typically comprising a pre-treatment cell and an electrolytic cleaning cell. In the electrolytic stage, controlled electrical current induces chemical reactions that dissolve rust, scale, and residues without abrasive action, preserving mold surface integrity. Advanced systems incorporate sensors to monitor current density, temperature, and electrolyte concentration, enabling real-time adjustment of cleaning parameters. This ensures uniform cleaning across complex mold geometries and narrow cooling channels while minimizing chemical consumption and energy use.

Product Structure, Performance, Materials, and Manufacturing

The system generally consists of two interconnected tanks, circulation pumps, filtration units, a chemical dosing system, and a programmable control module. Components in direct contact with electrolytes are typically made of corrosion-resistant stainless steel or high-performance polymers to withstand repeated operation. Performance metrics focus on consistent cleaning across all stages, adaptability to different mold sizes, and minimal manual intervention. During manufacturing, leak-proof construction, electrical safety compliance, and precise assembly are prioritized to ensure reliability and longevity in industrial environments.

Key Factors Influencing Cleaning Quality

Several factors determine the efficiency and quality of the cleaning process. Deposit composition—mineral scale, rust, or polymer residues—dictates the choice of electrolyte and current settings. Mold geometry, including channel length and diameter, affects flow dynamics and cleaning uniformity. Water quality, electrolyte maintenance, and proper calibration of pumps and sensors are essential for achieving repeatable results. Inadequate monitoring of process parameters can lead to under-cleaning or surface corrosion, highlighting the importance of precise control and regular maintenance.

Supplier Selection and Supply Chain Considerations

Selecting a suitable supplier involves more than equipment specifications. Buyers should consider the supplier’s technical expertise, customization options, and after-sales support. Availability of compatible electrolytes, spare parts, and compliance with regional safety and environmental regulations are crucial. For global operations, suppliers with localized service networks reduce downtime and facilitate integration into preventive maintenance programs.

Common Industry Challenges

Industrial users often encounter challenges such as incomplete cleaning of narrow channels, scaling of electrolytes, and inconsistent results from manual methods. Over-aggressive cleaning can damage mold surfaces, whereas insufficient cleaning leaves deposits that compromise heat transfer and product quality. The two-cell electrolytic mold cleaning machine addresses these challenges through automated multi-stage processes, real-time monitoring, and standardized operating procedures.

Application Scenarios and Use Cases

Automotive manufacturers use these machines to clean multi-cavity injection molds, ensuring uniform cooling and reducing cycle time variation. Electronics producers maintain precision dies for connectors and housings, where even minor residues can affect assembly tolerances. Die casting operations benefit from oxide and scale removal without disassembling molds, reducing downtime and extending mold life. Across industries, two-cell systems support preventive maintenance schedules, enabling consistent cleaning without interrupting production.

Current Trends and Future Directions

The market is moving toward intelligent, data-driven cleaning solutions. Integration with factory automation allows cleaning cycles to be triggered by real-time sensor data, minimizing chemical use and energy consumption. Closed-loop electrolyte circulation, adaptive current control, and automated monitoring enhance efficiency while reducing operational costs. Future innovations are expected to focus on predictive maintenance, eco-friendly electrolyte formulations, and compatibility with advanced mold designs, including additive-manufactured cooling channels.

FAQ

Q1: How often should molds be cleaned using a two-cell system?
Cleaning intervals vary based on production volume and water quality, but many manufacturers rely on sensor-based condition monitoring to schedule maintenance.

Q2: Is this method safe for delicate molds?
Yes, controlled electrolytic cleaning removes deposits without mechanical abrasion or surface damage.

Q3: Can automation reduce downtime?
Automated dual-stage cleaning ensures consistent results, reduces manual labor, and supports preventive maintenance programs, minimizing unplanned downtime.

Conclusion

The two-cell electrolytic mold cleaning machine is an essential tool for modern manufacturing, offering controlled, repeatable, and efficient cleaning for molds and precision components. By combining multi-stage cleaning, precise process control, and automation, it enhances operational efficiency, extends mold lifespan, and maintains consistent product quality. As industries advance toward higher precision and sustainability, these machines will play a pivotal role in mold maintenance and manufacturing optimization.
